Description

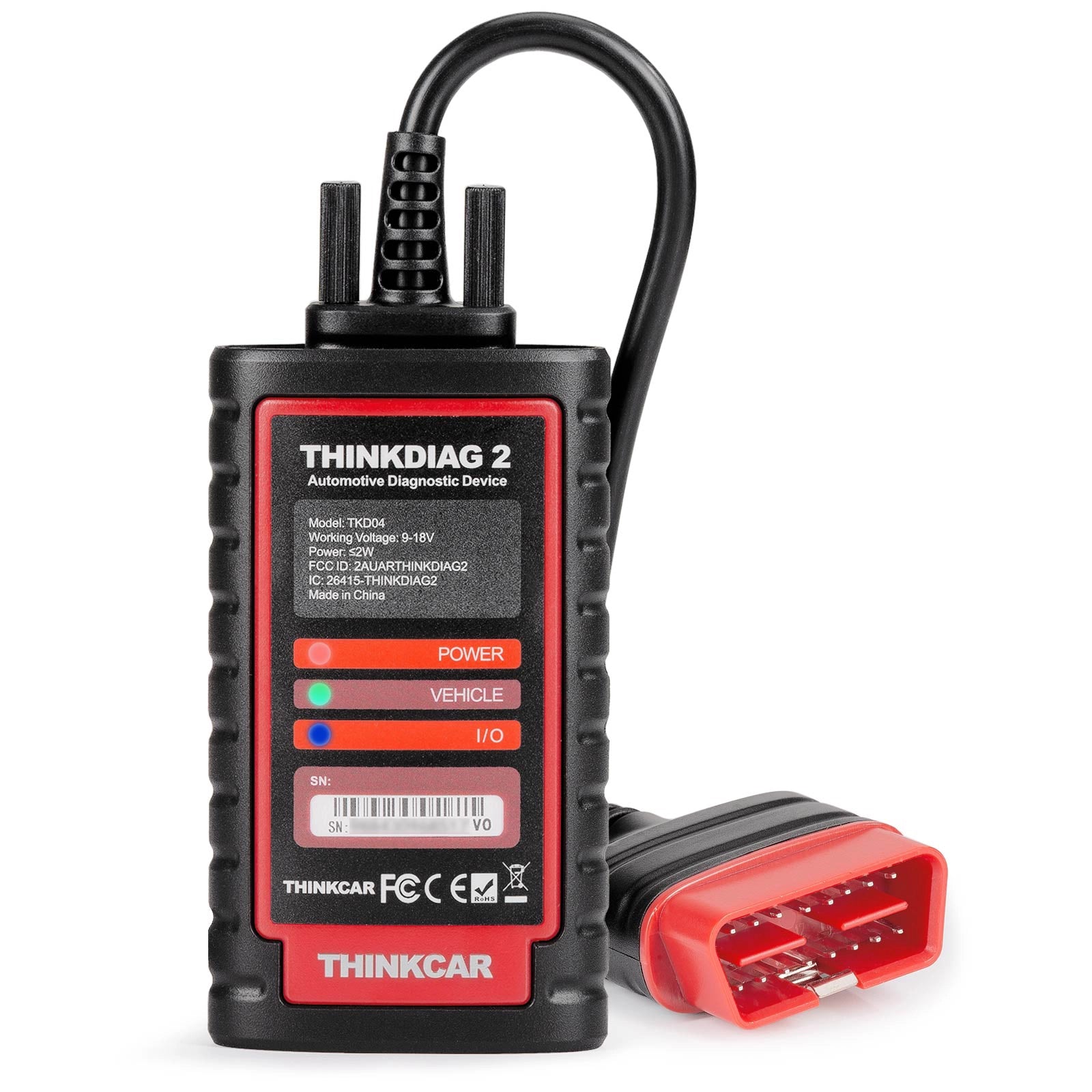

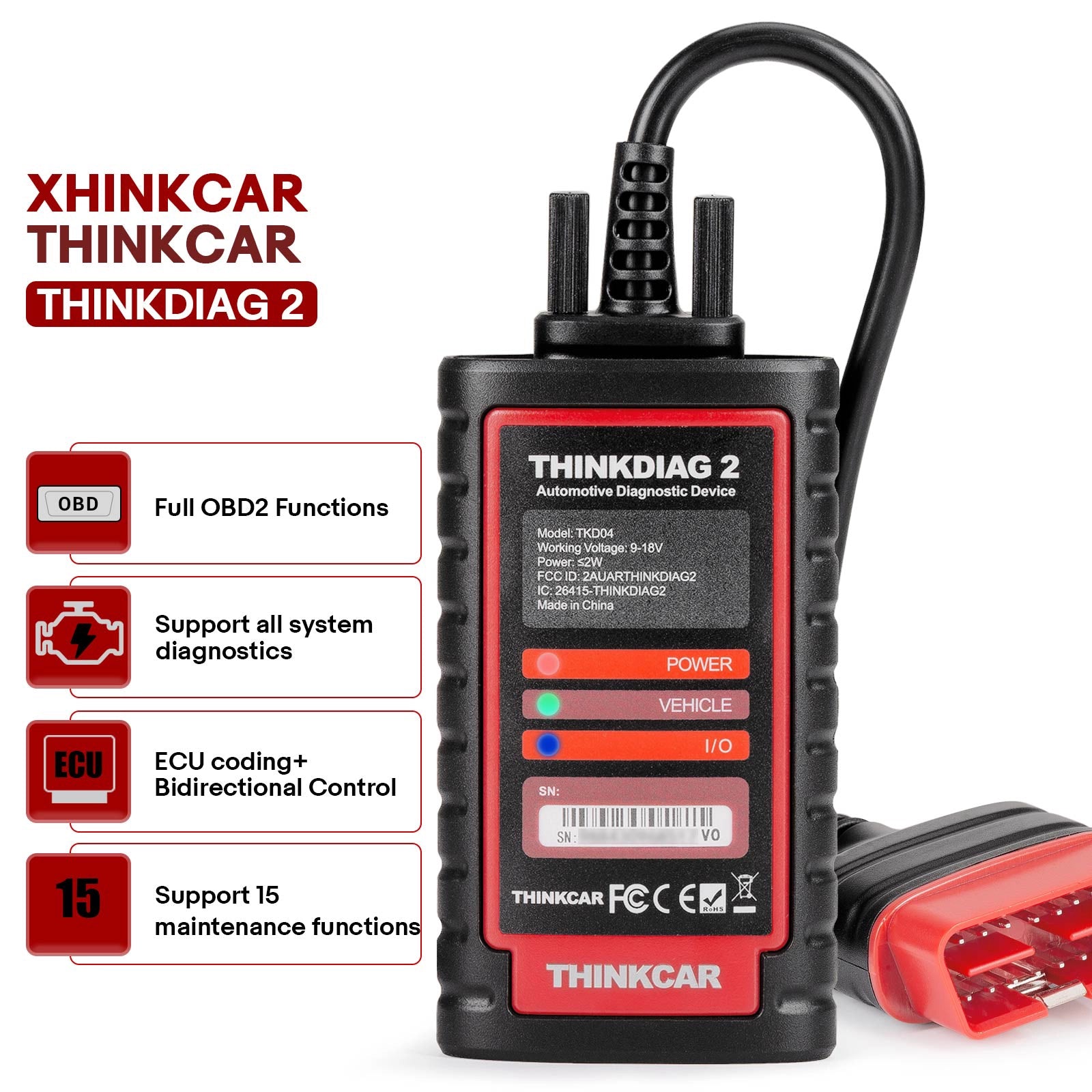

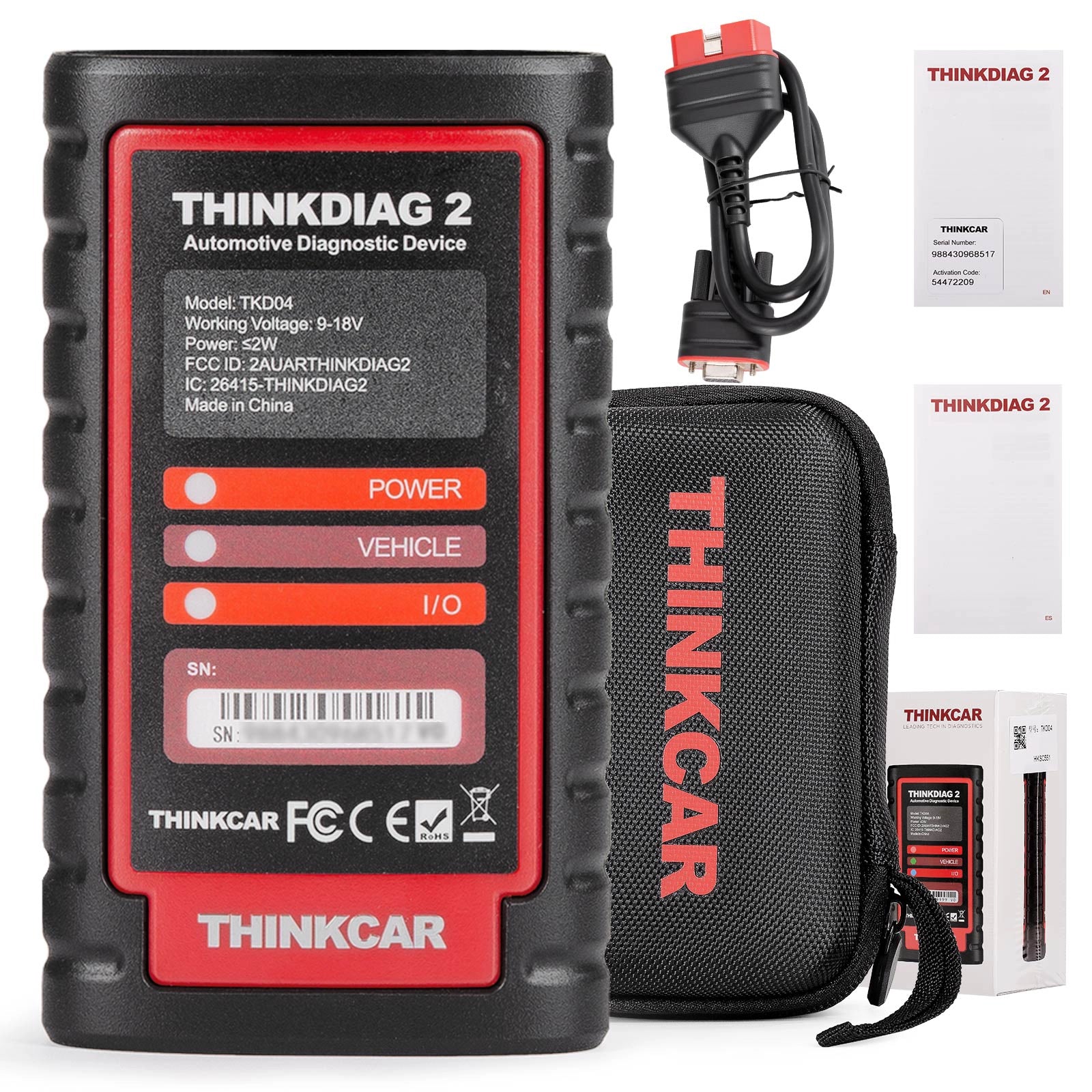

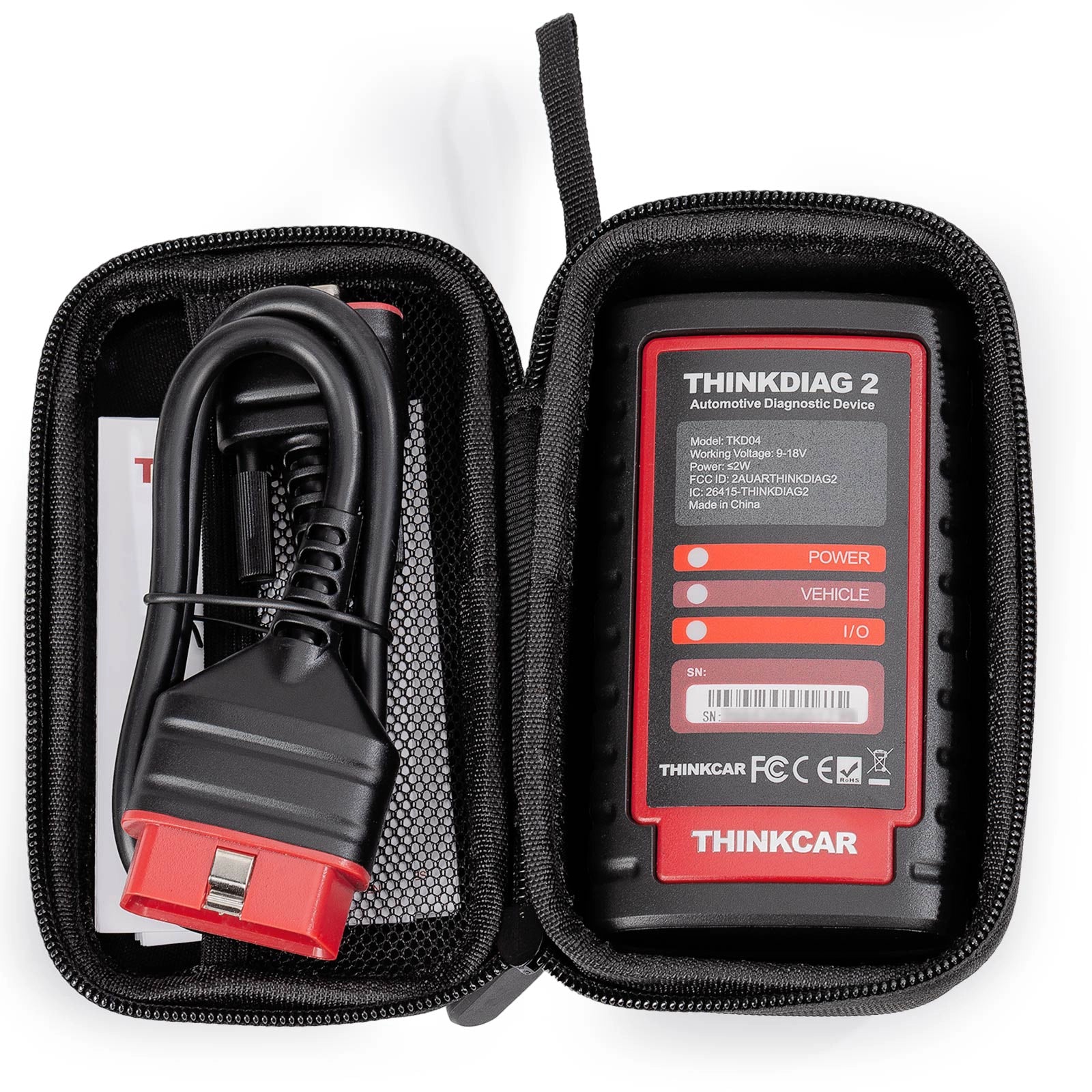

THINKCAR Thinkdiag2 All System Bidirectional Diagnostic Tool Auto VIN ECU Coding 15+ Reset Functions with CAN-FD Protocol One Year Free Update
Thinkcar Thinkdiag2 is the most powerful wireless diagnostic tool for it's price! Equipped with multi-functions of Newly added CAN-FD protocol + Bi-Directional control(Active Test) + ECU coding+ 15 Maintenance resets + All Systems diagnosis+Auto VIN+FCA AutoAuth +120+ Car brands coverage etc. No IP limited. Good for workshops & DIYers.
Thinkdiag2 OBDII code scanner is designed for individual car owners, DIYers, and minor repair shops, which has a separate menu of 15 standard special functions, such as Oil reset, EPB reset, DPF regeneration, SAS calibration, ABS bleeding, injector code, IMMO matching, TPMS reset, etc. Enter from the all-system diagnostic menu to unlock more system special functions and effectively handle the reset and relearn of most cars.
THINKCAR Thinkdiag2 Highlights:
1. Support CAN-FD protocol, add more cars
2. ECU coding + Bi-Directional/Active test
3. Full system diagnostic + 15 maintenances
4. Adaptation + IMMO Key Matching + Auto VIN
5. Covers 98% of car models available in the market
6. Support 12+ languages
7. One Year Free Update Online,after 1 year, update fee 70USD (if you don't renew it, you can only use the basic OBDII full function)
8. THINKDIAG2 VEHICLE COVERAGE INQUIRY
Thinkdiag2 is the upgraded version of Thinkdiag car code reader/automotive scanner.
Thinkdiag vs Thinkdiag 2
The most significant difference between thinkdiag and thinkdiag2 is CAN FD protocols. Thinkdiag2 has a built-in CAN FD protocol. It is the only product in this price range that is compatible with CAN-FD protocol and supports the latest GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products, and reduces the risk of undetected errors to enhance the user experience significantly. CAN-FD protocol supports the GM vehicles manufactured after 2020. The CAN-FD protocol uses a higher-performance CRC algorithm, which reduces the risk of undetected errors to a large extent. The CAN-FD protocol can accommodate more data from 8 to 64 bytes in a CAN frame, with relatively less system overhead, and can support better data throughput when sending larger data objects, making the software simpler and more efficient. Not only does it provide shorter CAN frames while increasing the bit rate, but this also has the advantage of shorter latency, more accuracy, better real-time performance, and higher bandwidth.
Thinkdiag2 Functions:
ECU Coding (Customize)
Uses the ThinkDiag 2 App to modify the adaptive data for vehicle control modules after repairs or replacements of vehicle parts, including: Power Window | Illuminated Entry | Warning | Light Control | Slide Roof | Air Conditioner | Display | Unit Conversion | Entry & Start | PSD & PBD Operation | Seat
Active Test (Best bidirectional scan tool)
Uses the ThinkDiag 2 App to test if the actuator is standard, without using the vehicle’s controls, to get a significant boost in effectiveness: Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock …
Scan Tool to Reprogram Keys
Based on continuous innovation, Thinkdiag 2 perform IMMO functions, such as Key Learning, Remote Control Learning, Remote Control Add, etc. It can perform Programming, accessing the key chips, reading, retrieving, and writing key information, easy key programming, as well as other key-related functions.
4 Data display in 1 Graph
Thinkdiag 2 will Read the vehicle's live data and present it by graph—an optional combination of multiple data.
Auto Scan Car VIN Code
Thinkdiag 2 can automatically scan the car's information, including VIN, release year, model, and engine type.
Print the vehicles report
Support does an OBD vehicles diagnostic report and prints the vehicles report from PC; it helps you understand the car's problem and lets you know how to repair the car.
Full System OE level functions
ThinkDiag 2 Enhanced diagnostic scanner can perform OE-level diagnostics on all systems, such as ABS, SRS, Engine, Transmission, Wiper, Seat, EPB, TPMS, Body System, AWD, Door Lock System, Battery, ESP, Parking Sensor, Cruise Control, Instrument, etc.
